工業範疇3D金屬列印系統

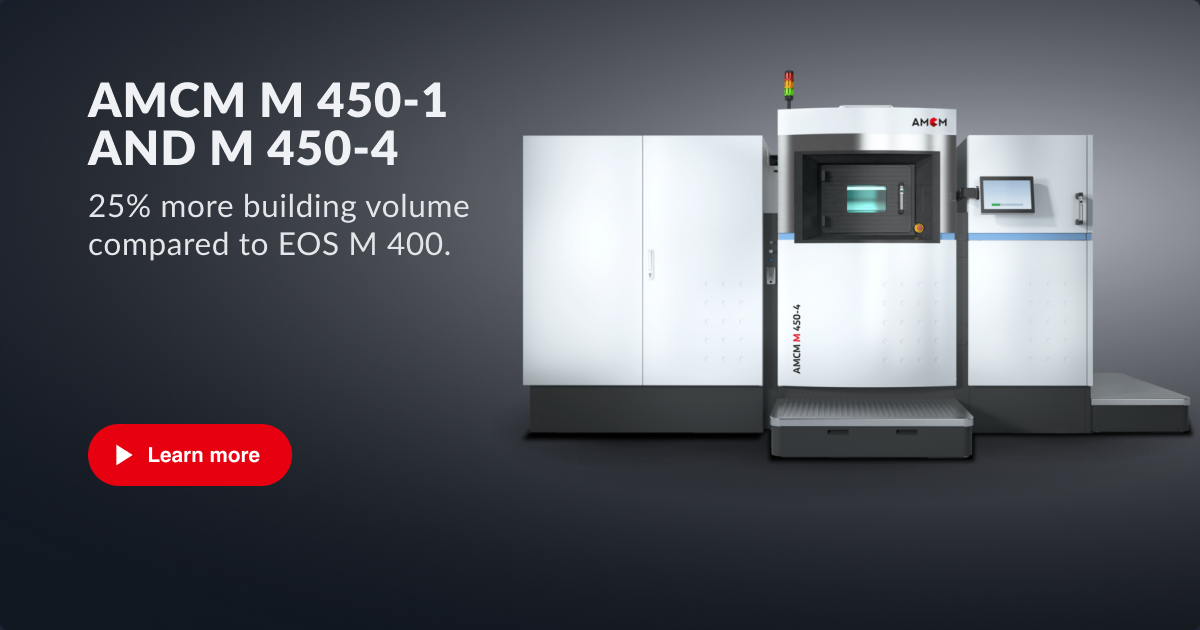

與 EOS M400 規格品相比,建築體積增加了 25%。
更大的建築結構
建築結構為 450 x 450 x 400 mm
(包括底板)
參數兼容
與規格品 EOS M400
(相同的焦點、光束質量等)
配件選購
適用於 AMCM M450 的耗材和選件
(構建板、塗佈機刀片或軟塗佈機等)
現場升級
適用於 EOS M400-1 到 AMCM M450-1
新系統設計
AMCM M450-4 新光學設置覆蓋整個建構區域(450 x 450 mm)
SmartCAL
使用 SmartCAL 進行校準和重疊調整
Technical Data
EOS M 450 Building volume 450 mm x 450 mm x 360* mm (17.72 x 17.72 x 14.17 in)(* 400 mm without heating)(15.75 in without heating) Laser type Yb-fibre laser Precision optics F-theta-lens Scan speed up to 7.0 m/s (23 ft/s) Focus diameter approx. 85 µm (0.003 in) Power supply 63 A / 400V Power consumption 23 kW (AMCM M 450-4) / 19 kW (AMCM M 450-1) Nitrogen generator integrated Compressed air supply 7,000 hPa; 20 m³/h (102 psi; 706 ft³/h) Dimensions (W x D x H; Process Station (with Periphery Station) and Setup Station) System 4,880 mm x 2,440 mm x 3,308 mm (192.1 x 96.1 x 130.2 in) Recommended installation space min. 6,500 x 6,000 x 4,173 mm (256 x 236 x 164 in) Gewicht approx. 5,980 kg (13,184 lb) Data preparation Software EOSPRINT; EOS RP Tools; EOSTATE; Materialise Magics RP with SG+ and further modules CAD interface STL, optional: converter for all standard formats Network Ethernet EOS monitoring solutions available
EOS Monitoring-Products EOS M 400 EOS M 290 EOSINT M 280 / M 270 1 EOSTATE Base ✕ ✕ ✕ EOSTATE Laser ✕ ✕ ✕ 2 EOSTATE Modul QualityAssurance ✕ ✕ ✕ EOSTATE Modul Controlling ✕ ✕ ✕ EOSTATE Modul MachinePark ✕ ✕ ✕ 3 EOSTATE PowderBed ✕ ✕ 4 EOSTATE MeltPool ✕
