Additive Manufacturing Materials

RESIN

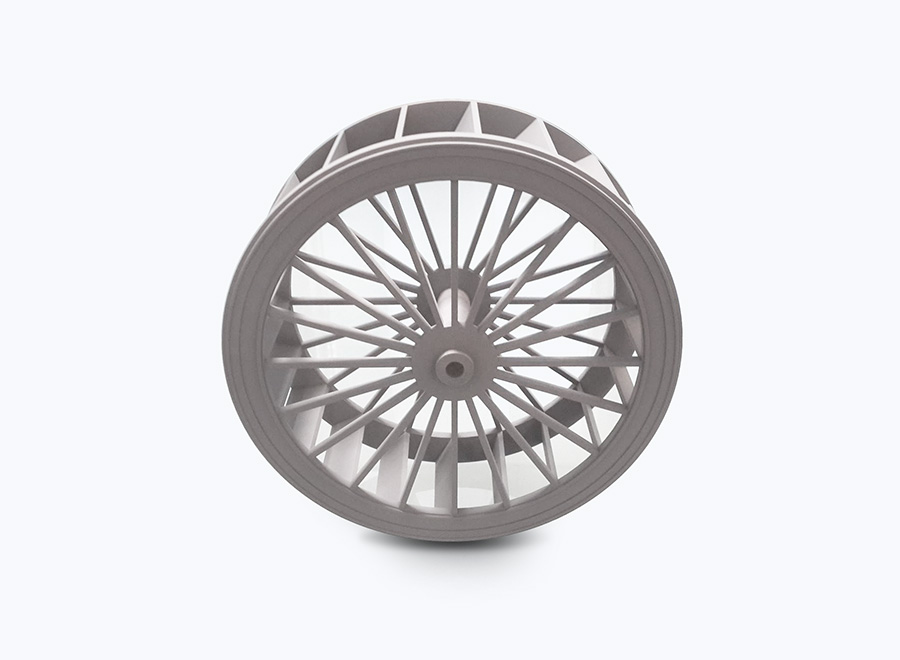

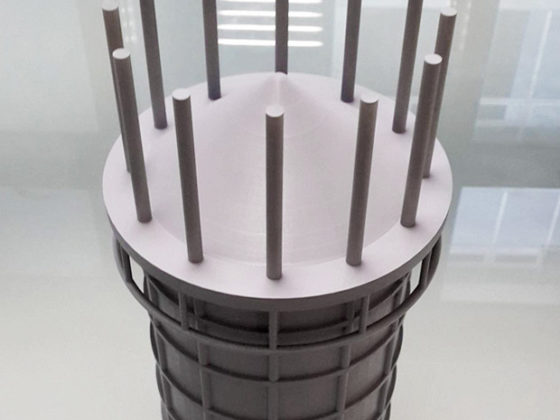

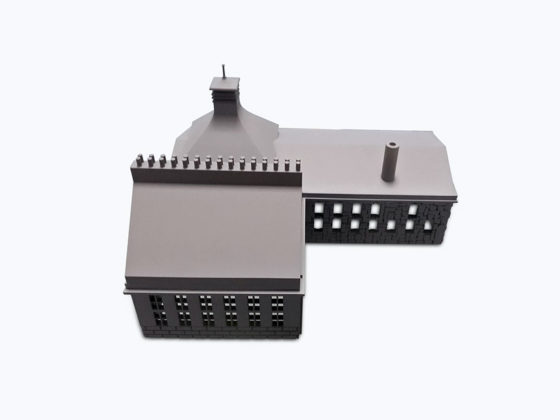

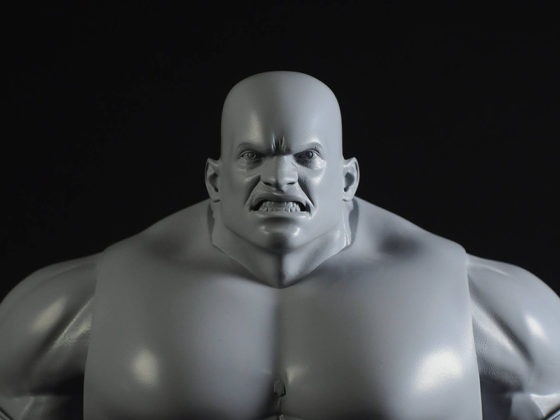

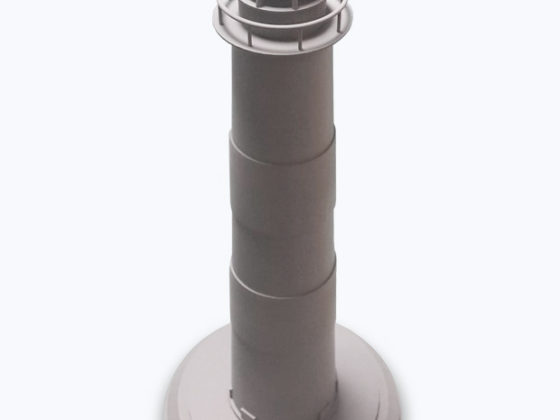

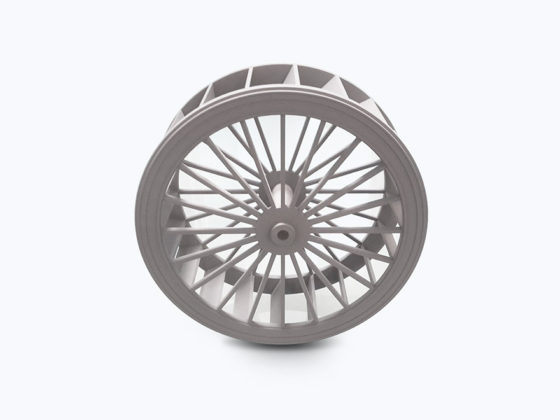

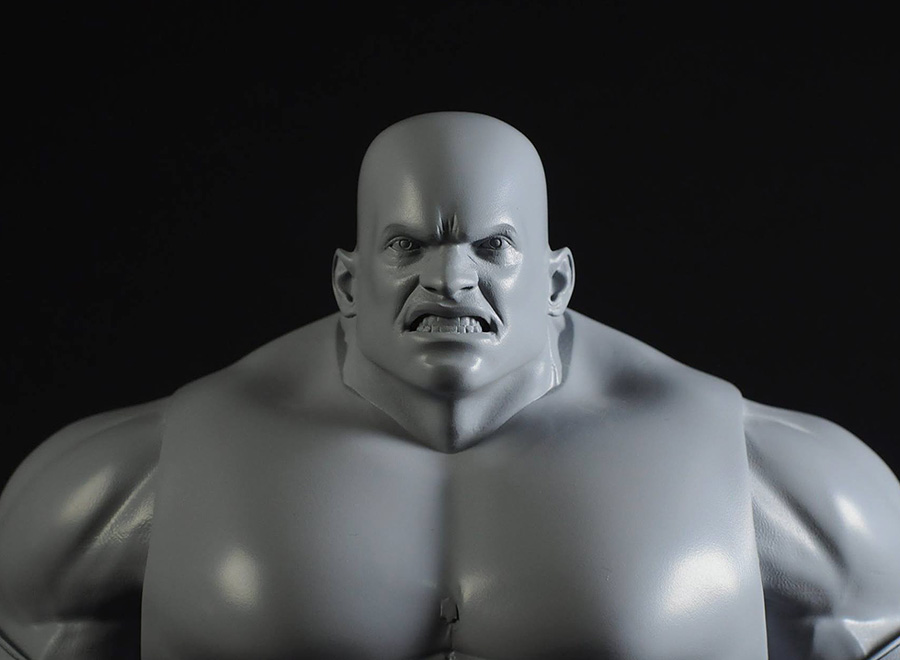

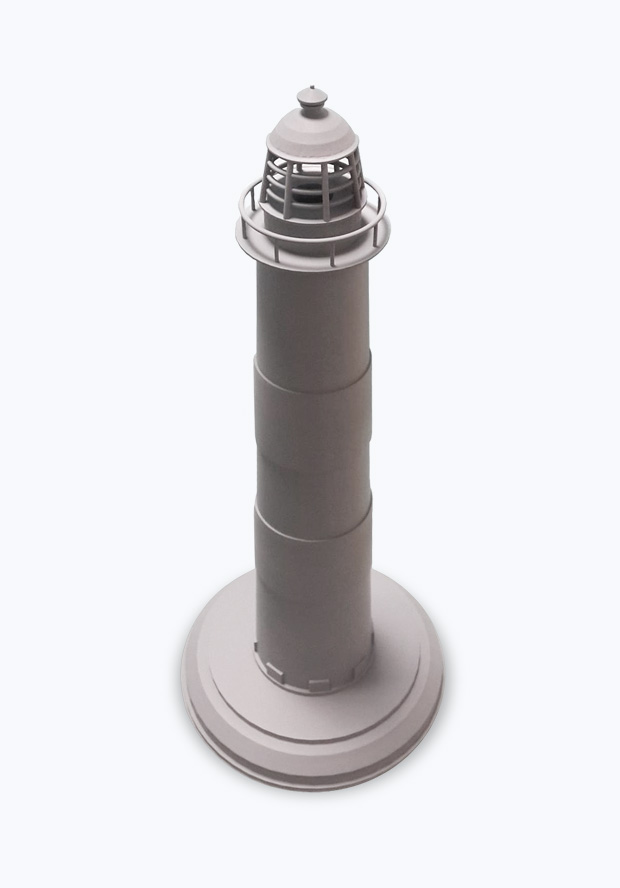

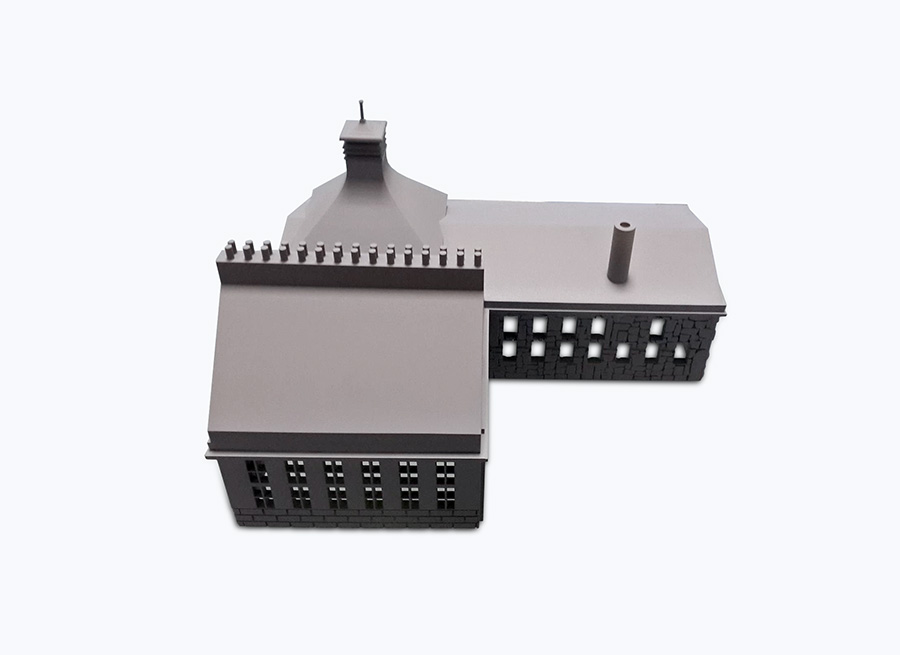

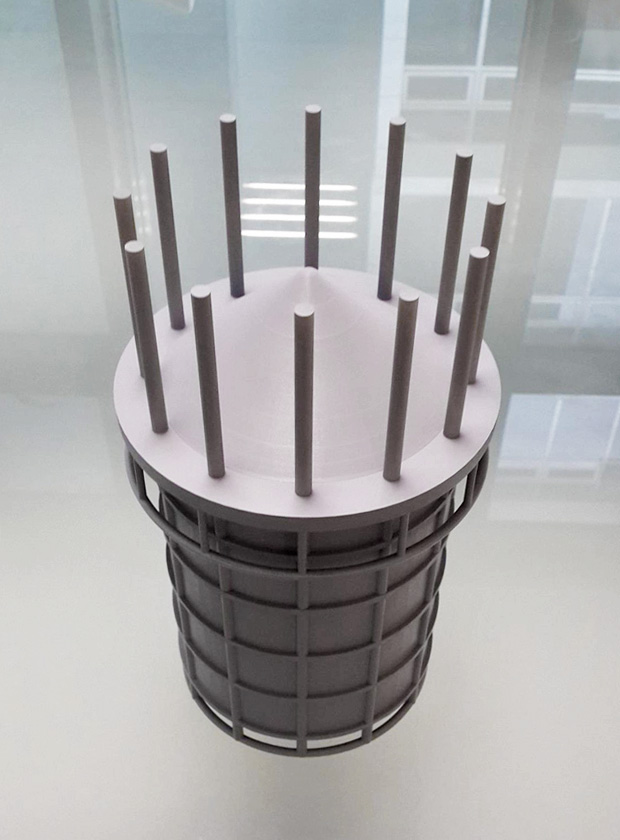

ABS (SCR735)

  • Tough, hard & rigid
  • Excellent ductility
  • Electroplated


Design Specifications

Standard print area :
600mm x 600mm x 500mm


Technical Specifications

Tensile Strength :
45 – 67 MPa

Tensile Modulus :
2510 – 2720 MPa

Flexural Strength :
83 – 97 MPa

Flexural Modulus :
2530 – 2570 MPa

Izod Impact :
29 – 39 J/cm

Heat Deflection Temp at 0.45MPa:
86°C

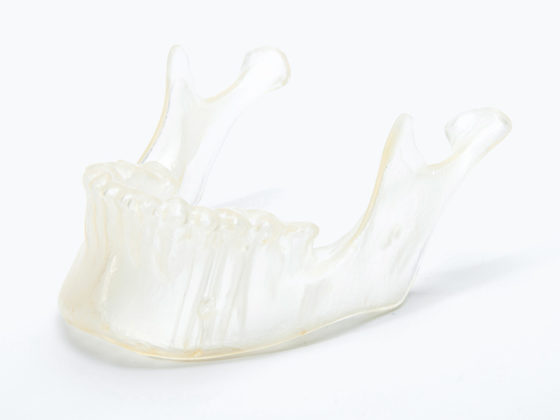

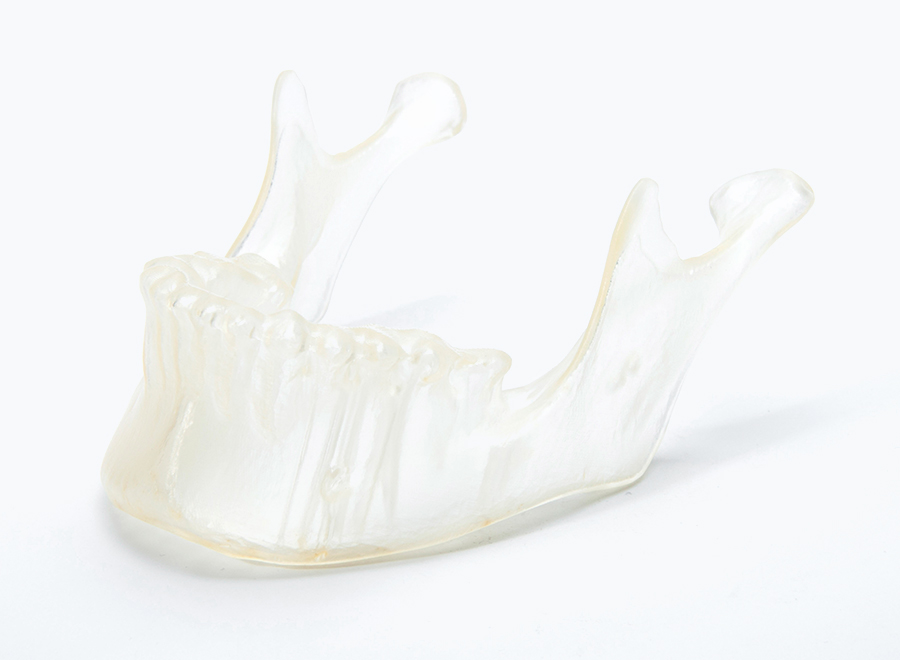

OXYCETANE (SCR 950)

  • High sensitivity
  • High toughness
  • Great for smaller detailed models (eg: connector prototyping)

Design Specifications

Standard print area :
300mm x 300mm x 270mm

Technical Specifications

Tensile Strength:
51 MPa

Tensile Modulus:
2000 MPa

Flexural Modulus:
75 MPa

Hardness (D) :
85

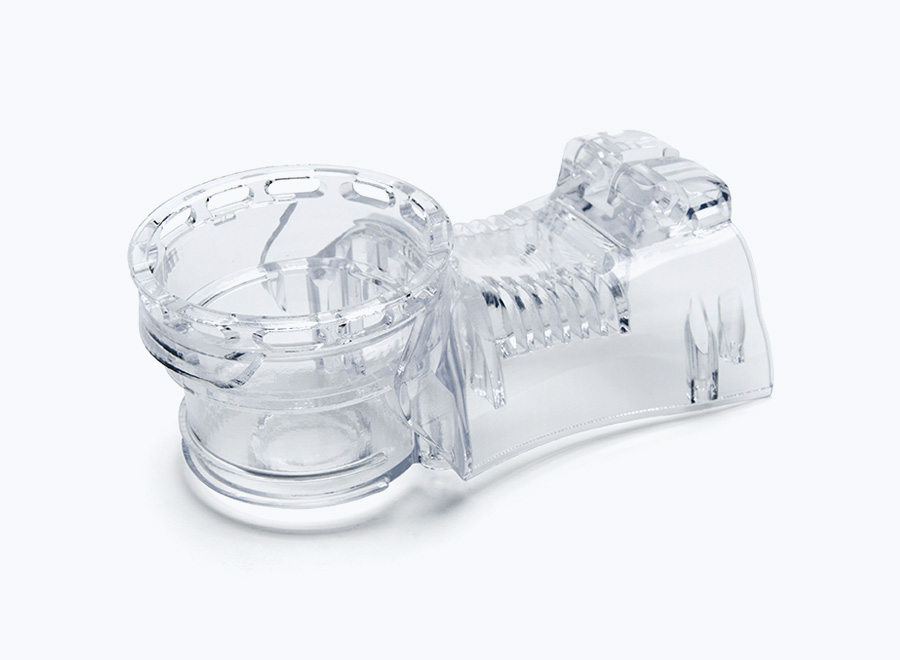

EPOXY (TSR-884B)

  • Non Antimony
  • Light blue in pigment & transparent
  • High heat resistance


Design Specifications

Standard print area :
400mm x 400mm x 300mm


Technical Specifications

Flexural strength :
79 – 87 MPa

Flexural modulus :
2080 – 2260 MPa

Izod impact-notched :
25 – 30 J/cm

Tensile Strength :
50 – 51 MPa

Tensile modulus :
2090 – 2370 MPa
